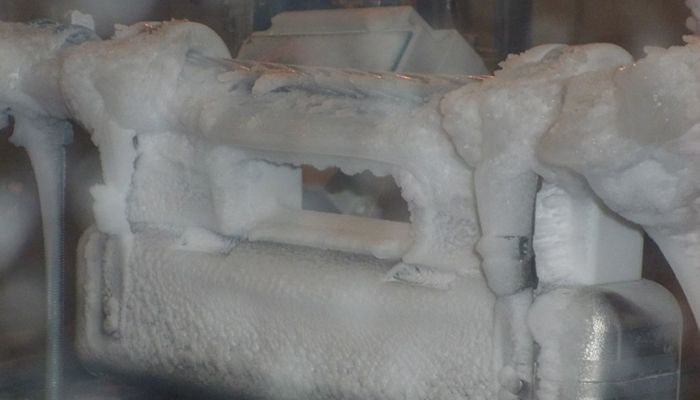

emo_ice in the Ice Tunnel at University Quebec, Chicoutimi, Canada
emo_ice in the Ice Tunnel at University Quebec, Chicoutimi, Canada

Ice Accration Sensor emo_ice

Principal of Electrical Capacitance Tompgraphy.
Multichannel methode is used which enables to detect the beginning of the icing process as well as to distinguish between freezing water and melting water and vice verca.
Thickness of the ice can be determined. Patent pending for the methode (Graz University of Technology).
  • Electronics: In sensor body emo_lsh
  • Energy supply: LiIon battery in emo_lsh body
  • Lifetime: 5 years at measuring cycle 1 minute
  • Humidity: 5% to 95%
  • Weight: ca. 1,3 kg

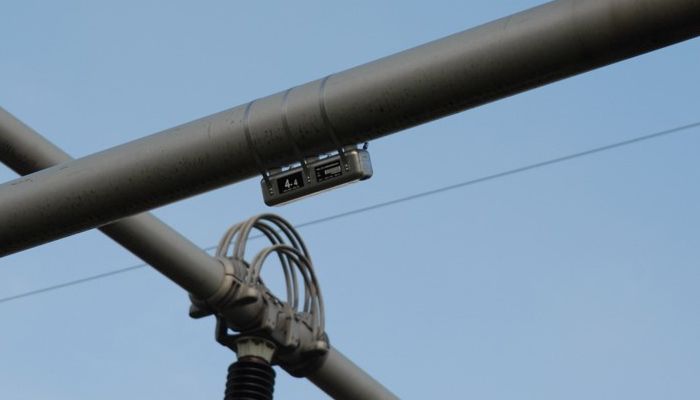

emo_lsb Installation in Substation
emo_lsb Installation in Substation

Powerbar Sensor emo_lsb

  • Bar diameter: up to 200mm
  • Voltage level: 110kV 220 (225)kV, 380 (400)kV, 750kV (other levels on request)
  • 3 sensors on the line, 1 reference in the sensor body
  • Reach sensor/base station: 60m
  • Energy supply : Batterypack (LiIon)
  • Lifetme (typical): 10 years, measurement cycle: 1 Minute
  • Wireless transmission sensor/base station: DSSS 868 MHz
  • Measuring range: -25℃ bis +180℃, max. 210℃for 2h
  • Accuracy: +/- 1,5℃
  • Weight: 1,5 kg

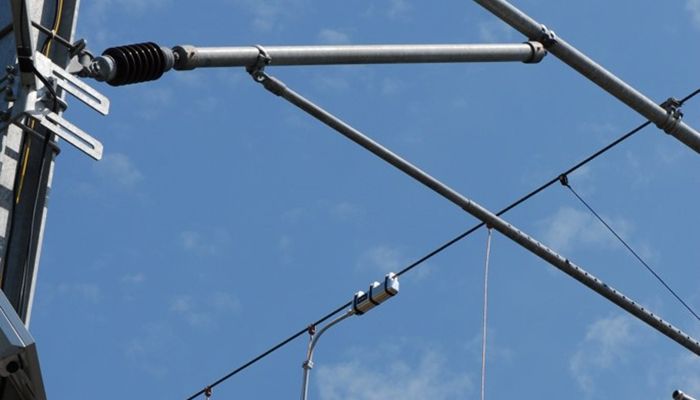

emo_lst on an Traction Line under Railway Operation
emo_lst on an Traction Line under Railway Operation

Overhead Traction Line Sensor emo_lst

Overhead traction line sensor for railway application
  • 3 sensors on the traction line
  • Reach sensor/base station: 60m
  • Energy supply : Batterypack (LiIon)
  • Lifetme (typical): 5 years, measurement cycle: 20 sec
  • Wireless transmission sensor/base station: DSSS 868 MHz
  • Measuring range: -25℃ bis +180℃, max. 210℃for 2h
  • Accuracy: +/- 1,5℃
  • Weight (body, sensor, connection cord): 1,8 kg
  • Approval for use under regular railway operation

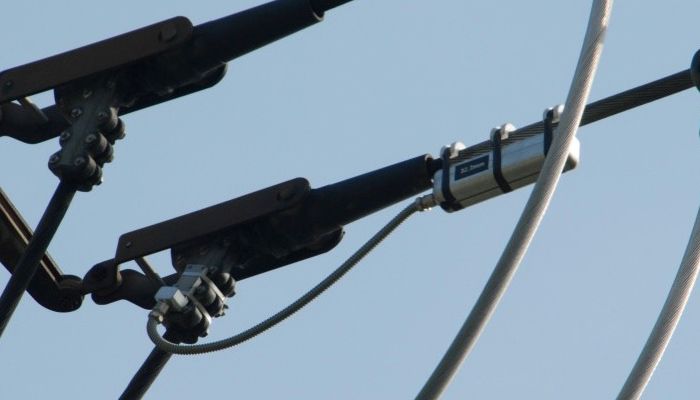

Clamp Installation in Substation
Clamp Installation in Substation

Clamp Sensor emo_lsc

Sensor individually adapted to the clamp in use.

  • Voltage level: 110kV 220 (225)kV, 380 (400)kV, 750kV (other levels on request)
  • 3 sensors on the clamp
  • Reach sensor/base station: 60m
  • Energy supply : Batterypack (LiIon)
  • Lifetme (typical): 10 years, measurement cycle: 1 minute
  • Wireless transmission sensor/base station: DSSS 868 MHz
  • Measuring range: -25℃ bis +180℃, max. 210℃for 2h
  • Accuracy: +/- 1,5℃
  • Total Weight (Body, Sensor, Connection Cord): 2 kg
Live Line Installation of emo_lsh
Live Line Installation of emo_lsh

Line Sensor emo_Ish

Sensor attached to the line using TCC methode
  • Voltage level: 110kV 220 (225)kV, 380 (400)kV, 750kV (other levels on request)
  • 3 sensors on the line, 1 reference in the sensor body
  • Reach sensor/base station: 60m
  • Energy supply : Batterypack (LiIon)
  • Lifetme (typical): 10 years, measurement cycle: 1 Minute
  • Wireless transmission sensor/base station: DSSS 868 MHz
  • Measuring range: -25℃ bis +180℃, max. 210℃for 2h
  • Accuracy: +/- 1,5℃
  • Weight: 1,5 kg
