micca_meteosense_HV700S_WMO
Set of sensors complient to the WMO (World Meteorology Organization, secundary Standard) standards.
HV700S contains a secondary standard pyranometer, a 3D ultra sonic wind meter and a ambient temparatur/humidity sensor with guided airflow.

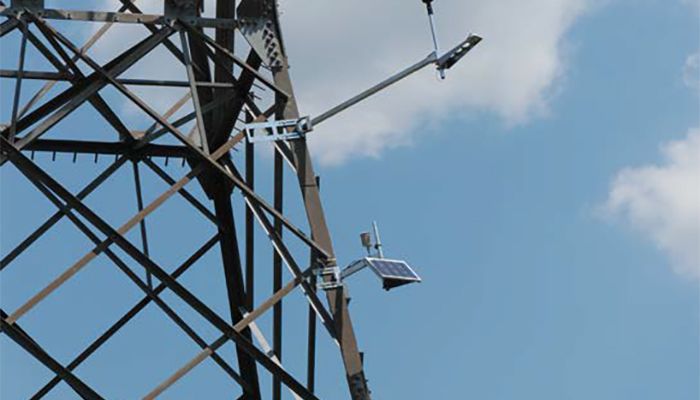

With the mountingkit emo_mkts the set of sensors can be mounted on the pylon as close a possible to the line.
HV700S contains a secondary standard pyranometer, a 3D ultra sonic wind meter and a ambient temparatur/humidity sensor with guided airflow.
With the mountingkit emo_mkts the set of sensors can be mounted on the pylon as close a possible to the line.
emo_etp/moi_vent, Temp./Humidity:
Temparature Sensor:
Temparature Sensor:
- Measuring Range: -40°C to +60°C
- Accuracy: +/-0,15 °C
- Resolution 0,1 °C
Humidity Sensor:
- Accuracy: +/-2 %
- Resolution 1 %
emo_ray_kz, Solar Radiation Sensor:
- ISO Certification: Secondary Standard
- Spectral Range: , 285 - 2800 nm).
- Sensitivity: 7 to 14γV/W/m²
- Detector Type: Thermopile
- Environment: -40°C to +80°C
emo_aero_3D, Wind sensor:
- 3D Ultrasonic Anemometer
- Range: 0 - 45 m/sec
- 0-359⁰ Wind Direction
- U,V,W Vector Outputs
- Accuracy: ‹1% @12m/sec
micca_meteosense_HV700_WMO
Set of sensors complient to the WMO (World Meteorology Organization, first Class) Standards. HV700 contains a first class star-pyranometer, a 2D ultra sonic wind meter and an ambient temparatur/humidity sensor.With the mountingkit emo_mkts the set of sensors can be mounted on the pylon as close a possible to the line.
emo_etp/moi, temperature/humidity:
- Measuring Range:
-40°C to +60°CAccuracy: PT100 1/3 DIN
emo_ray_sp, solar radiation sensor:
- ISO Classification: First Class
- Spectral Range: 0,3 – 3μm
- Range: 0 – 1500 W/m²
- Environment: -40°C to +60°C
emo_aero_2D, wind sensor:
- 2D Ultrasonic Anemometer
- Range: 0 -‐60 m/sec Accuracyt +/- 2% @12m/s
- Resolution: 0,01 m/s
- Environment: -35°C to +70°C
